BUS OVERVIEW

MULTI-MISSION GEO PLATFORM

GEO Aries is a highly-maneuverable, multi-mission platform designed to support high ΔV GEO missions while maximizing payload capacity in an ESPA payload envelope.

From GEO Rendezvous and Proximity Operations to space reconnaissance, GEO Aries is designed for next-gen proliferated operations in the GEO belt.

PAYLOAD MASS

UP TO

120

KG

PAYLOAD OAP

125+

W

Base Power EOL (5 yrs.)

FIRST FLIGHT

2027

DOWNLOAD THE GEO ARIES SPEC SHEET
DOWNLOAD THE GEO ARIES SPEC SHEET

NOTIONAL Missions

Next-generation GEO operations require highly maneuverable platforms built at scale. GEO Aries is enabling the future of GEO spaceflight with agile performance and a production-first design built for resilient, proliferated architectures.

PROLIFERATED GEO

GEO Aries is designed for serial production, enabling resilient proliferated architectures by replacing bespoke buses with scalable platforms.

GEO RPO MISSIONS

GEO Aries is optimized for agility with 800 m/s of available ΔV, 6DOF Hydrazine propulsion, and support for third-party RPO kits.

SPACE reconnaissance

Execute mission-critical space reconnaissance operations with persistent monitoring and responsive operations in geostationary orbit.

PROLIFERATED GEO

GEO Aries is designed for serial production, enabling resilient proliferated architectures by replacing bespoke buses with scalable platforms.

GEO RPO MISSIONS

GEO Aries is optimized for agility with 800 m/s of available ΔV, 6DOF Hydrazine propulsion, and support for third-party RPO kits.

SPACE reconnaissance

Execute mission-critical space reconnaissance operations with persistent monitoring and responsive operations in geostationary orbit.

Base Configuration Package

GEO Aries PLATFORM

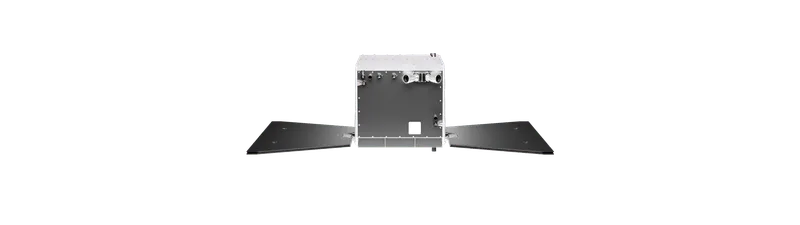

Front view of a metallic satellite with two extended solar panels on each side.
DOWNLOAD THE SPEC SHEET
DOWNLOAD THE SPEC SHEET

Design Life 5 Years (GEO direct inject)
Nominal Orbit Circularized GEO
Propulsion Options Chemical Propulsion (up to 800 m/s)
(ΔV performance payload mass dependent)
Compatible Launch Vehicles SpaceX F9 (Rideshare or Dedicated) | ESPAStar | USG ROOSTER | Others

Stowed Payload Volume ESPA 15" Compatible:
1350 × 500 × 600 mm (L x W x H)
Bus Dry Mass 175 kg
Payload Mass Up to 120 kg

Pointing Knowledge 10 arcsec @ 3σ
Pointing Control 20 arcsec @ 3σ
Maximum Slew Rate Up to 1 deg/sec
Precision GNC Package Option: Payload Boresight Mounted Star Tracker (Apex-Furnished)
Pointing Knowledge: 6 arcsec @ 3σ

Payload Orbit Average Power (EOL) Base Model: 125+ W
High Power Configuration: 500 W OAP
Payload Peak Power 500 W (Sustained)
750 W (Instantaneous)
Bus Voltage 28V Unregulated
Encryption Options AES 256 | NSA Type 1
Payload Power Services Gigabit Ethernet | RS422 | PPS | Discretes | 10 MHz Clock Signal | Analog
Payload Data Services RS422 | PPS | Discretes
Communications TT&C
S-Band Uplink (USB compatible): 5 kbps
S-Band Downlink (USB compatible): 25 kbps

[Optional] Mission Data Link
X-Band Downlink: 2.5 Mbps
Ka-Band Downlink: 4 Mbps
